Routes

A route is an HTTP endpoint defined in Luna Park. It wraps server-side logic (database queries, computations, transformations) and exposes it to the interface, which can call it like a function.

Creating a route

In the Explorer, right-click and pick New > Route. Two main properties:

• HTTP method: GET, POST, PUT, DELETE, PATCH.
• Path: the endpoint path. By default it matches the route name (a get-articles route is exposed at /api/get-articles).

Anatomy of a route

A route's graph runs from an input node to an output node. In between, you wire the logic: DB nodes, operations, conditions, etc.

Input

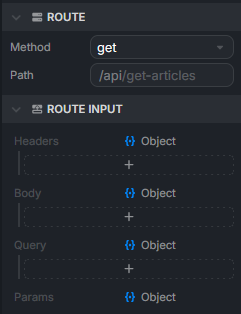

The input node exposes the data received by the route on four optional anchors:

• headers: HTTP headers (auth, content-type...).
• body: request body (typical for POST, PUT, PATCH).
• query: query string parameters (?id=5&limit=10).
• params: path parameters (/articles/:id).

You pull what you need and pass it to the downstream nodes. For example, an id coming from params can feed a DB Find by Id.

Output

The output node receives what the route sends back to the caller. Whatever you plug into its anchor becomes the HTTP response body.

Calling a route from the interface

Every time you create a route, Luna Park automatically generates a node named after it (get-articles, create-user...). You use it directly inside a frontend component's graph: its output holds the response, ready to wire into the interface (for example a Template to loop over it).

Guided example: display a list of articles

This example starts from an articles table (see Database to create it), creates a get-articles route that reads it, and renders the results in the interface.

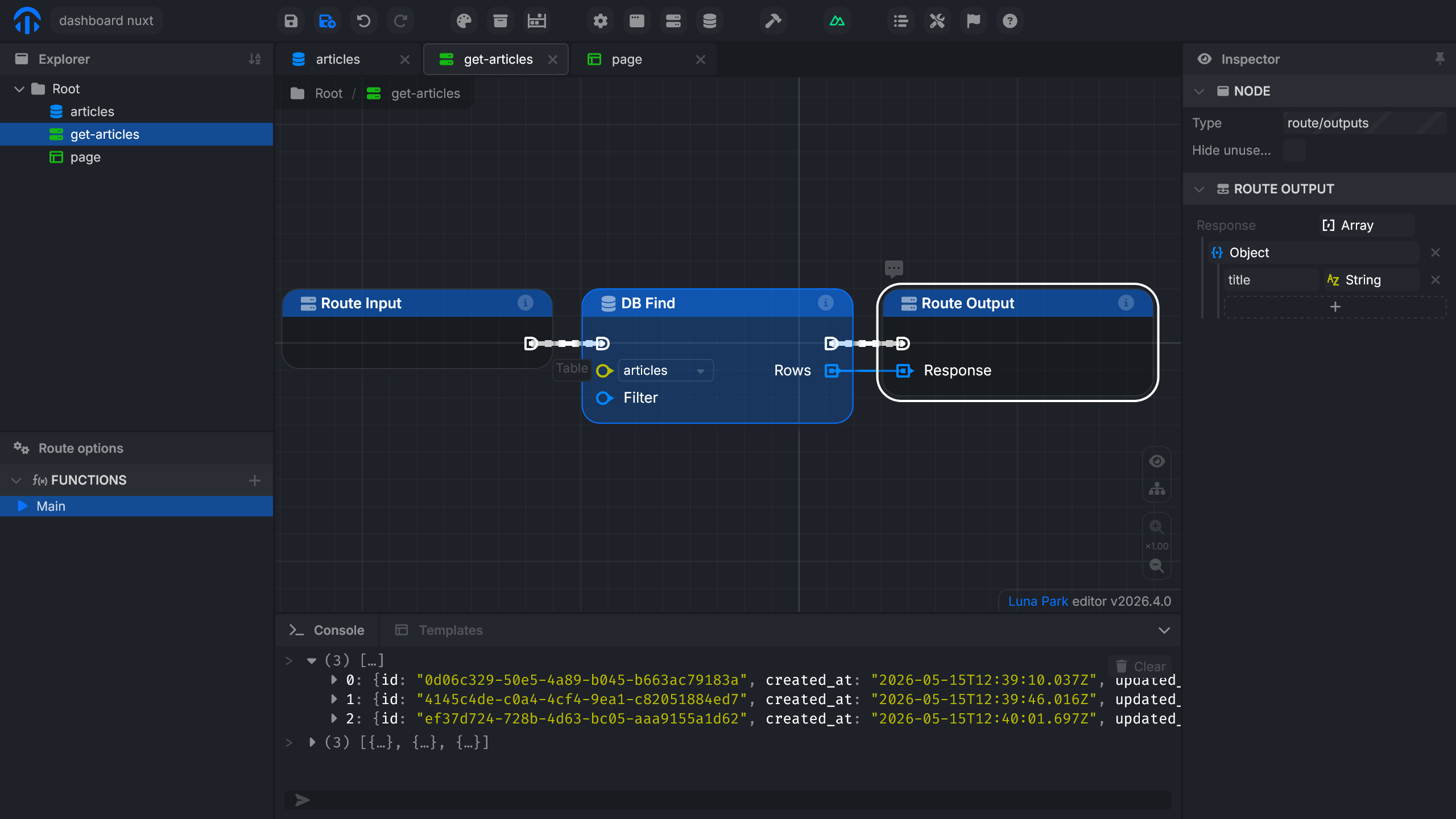

1. Create the get-articles route

1. Create a route named get-articles.
2. In its properties, pick the GET method.
3. In the route's graph, add a DB Find node on the articles table.
4. Wire the DB Find output to the route output.
5. Set the output Response to an Array of Object.

2. Call the route from the interface

1. In the page, create an articles variable typed as Array of Object with a title field (string). This way only the titles show up in the interface, without id, created_at, or updated_at.

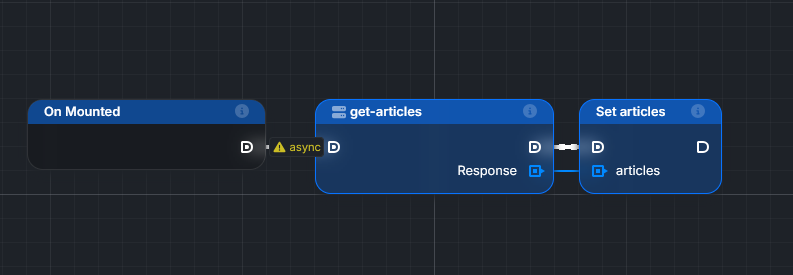

2. In the graph, add an On Mounted node to trigger the call on page load, then add the get-articles node and wire its output to Set articles.

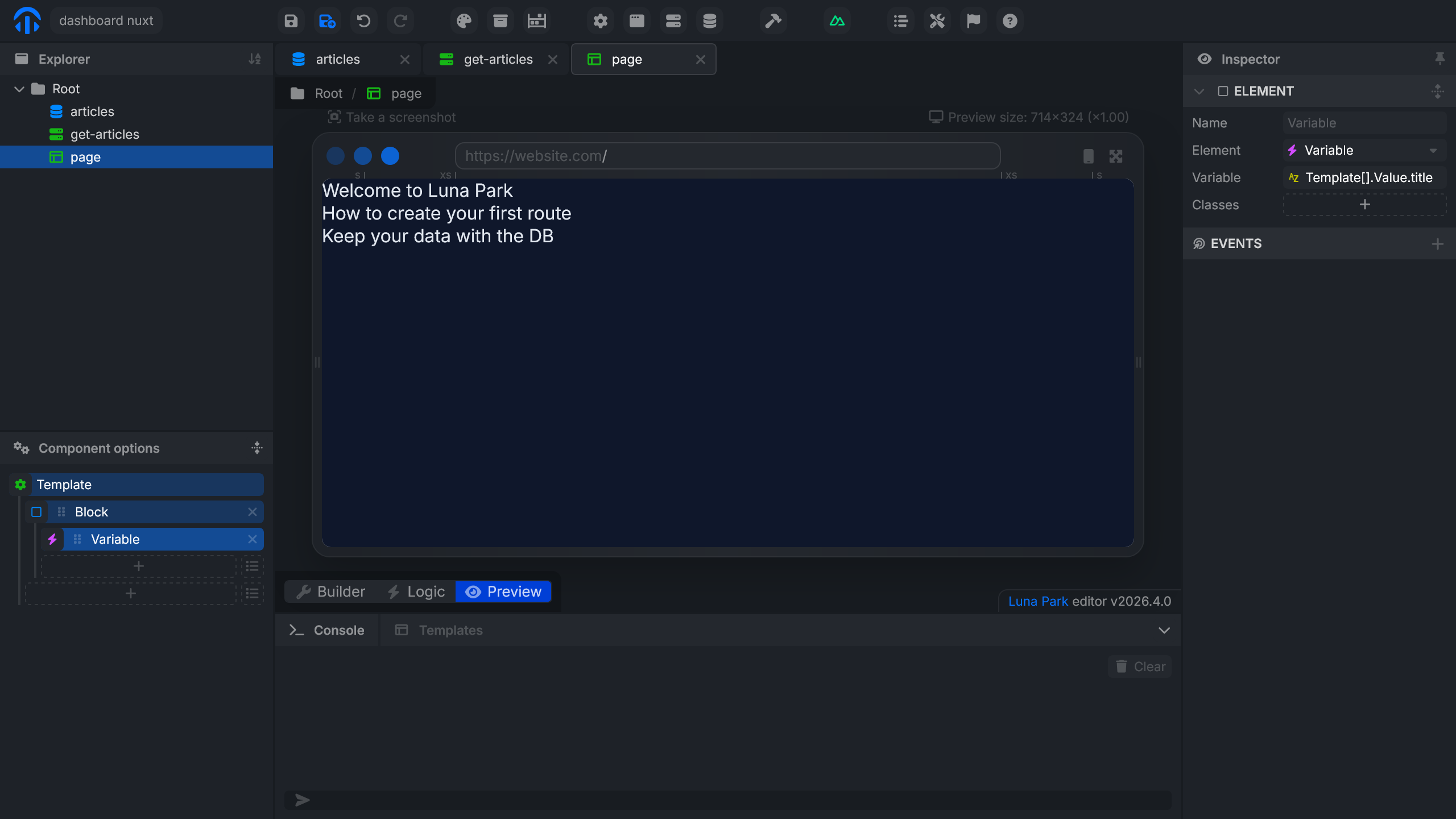

3. Add a Template component (For loop) in the interface and bind it to the articles variable.



4. Inside the template, create a Block, then add a variable bound to Template[].value.title to display each article's title.
